Flange Standard: HG20593-97 Thread standard: GB/T7307-2001

Important Notice:

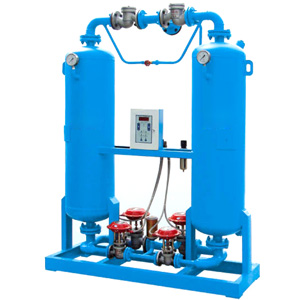

1, Make sure to equip a Pre-Filter equipment on the inlet of the heatless desiccant air dryer. The effect will be serious deterioration due to the liquid, also the useful life will reduced by the oil, more serious will be out of work.
2, Choose Pre grade air fiter for oil-free air compressors, Pre and After for oil-injected air compressor.
3, Pls equip After-Filter equipment after the heatless desiccant dryer to avoid the dust produced by the dryer.
4, Make sure equip a cut off bypass valve for safty when replace the filter element.

Using conditons:
1, Inlet pressure:stan 7 bar~10 Bar
2, Inlet temperature: <= 40 °C Ambient temperature <= 40 °C
3, Dew point temperature: -20 °C
4, 100% Saturated humid air.
