Compressed Air Dryer

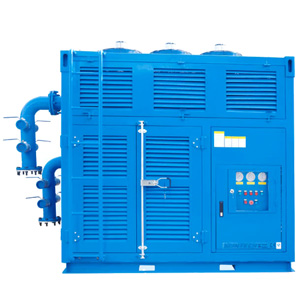

Movable Air Dryer

Details:

Flange Standard: HG20593-97 Thread standard: GB/T7307-2001
Cooling Method: Air Cooling

Using conditons:
1, Inlet pressure: 4 ~ 10 Bar
2, Inlet temperature <= 80 °C Ambient temperature <= 50 °C
3, Dew point temperature: 3 ~ 10 °C

Model	Capacity	Power Supply	Input Power	Compressor Power	Dimensions	Inlet/outlet	Weight
Model	m3/min	V/P/Hz	kW	HP	mm	connection	Kg
MD-500-AH	50	380/3/50	9.2	10	2100x1300x1900	DN125	1800
MD-1000-AH	100	380/3/50	18.5	20	2500x1450x2500	DN150	3200
MD-1500-AH	150	380/3/50	26.4	300	2800x1800x2500	DN200	4200
MD-2000-AH	200	380/3/50	35.6	40	3200x1800x2800	DN200	5200
